Q235 Galvanized Steel Walkway Grating 32*3mm For Stair Treads / Walkway
Description of Steel Grating Walkway

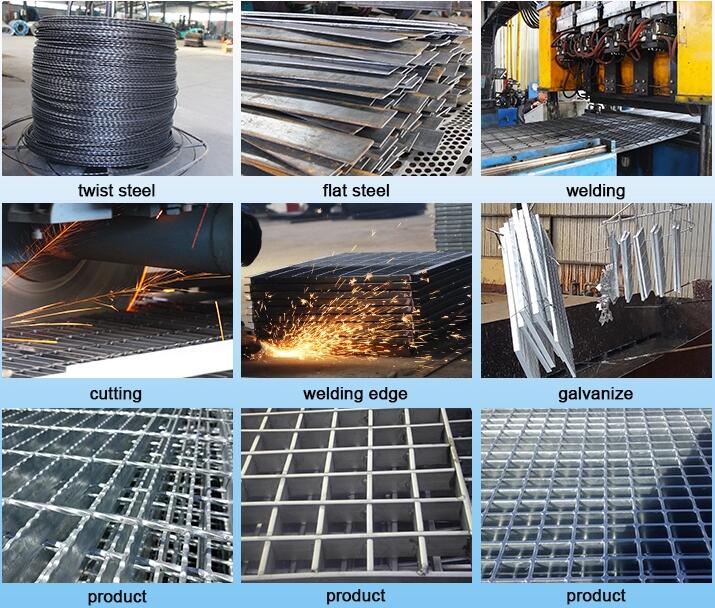

Steel grating/Bar grating are welded by flat bar and square twist bar, or fully welded by flat bar. It can be used for a variety of applications. Bar grating is an ideal choice for projects ranging from trenches and stair treads to decking and steel flooring. Used as metal grates, bar grating covers open areas in flooring that require light, liquid, air, heat, and sound to pass between flooring levels.
Materials: mild steel or stainless steel.
Surface treatment: untreated, painting or hot dip galvanizing.
Bearing bar specification:20*3 to 100*6
Bearing bar pitch:12.5,15,25,30,40,60mm etc. also be according to clients requirement and 30,40,60mm are recommended
Cross bar picth:38,50,76,100mm,also be according to clients requiremen and 50,100mm are recommended.
The Maximun length of black panel is 7350mm.
Advantage of Steel Grating Walkway
- Light weight
- great load-bearing capacity
- non-slip and e
- easy installation
- material-economic
- sturdy and durable
- ventilated, easy to clean and attractive appearance.
Surface Treatment of Steel Grating Walkway
Steel grating panel can choose galvanized,
stainless steel grating can choose polishing etc.

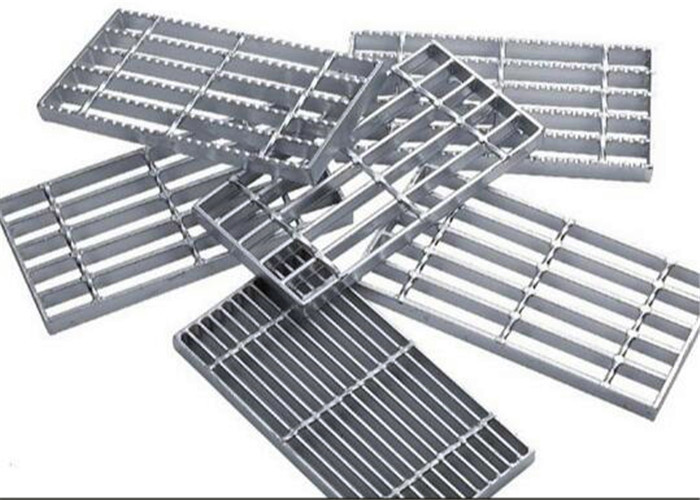

Specifications of Steel Grating Walkway
The steel bar size and specification ,please check the following table:
Specification of galvanized steel grating steel walkway and floor Steel grid plate and Steel frame lattice in metal building materials |
| Type | Welded steel grating, pressure locked, socket welding |
| Material | Low carbon steel, stainless steel, aluminum |
| Bearing bar | 20x5, 25x3, 25x4, 25x5, 30x3, 30x4, 30x5, 32x3, 32x5, 40x5, 50…75x8mm, etc. |
| Bearing bar pitch(center to center) | 25, 30, 30.16, 32.5, 34.3, 40, 50, 60, 62, 65mm, etc.or accord to the client’s request |
| Cross bar | 5x5, 6x6, 8x8mm (twisted bar or round bar) |
| Cross bar pitch | 40, 50, 60, 65, 76, 100, 101.6, 120, 130mm or as customers’ requirement. |

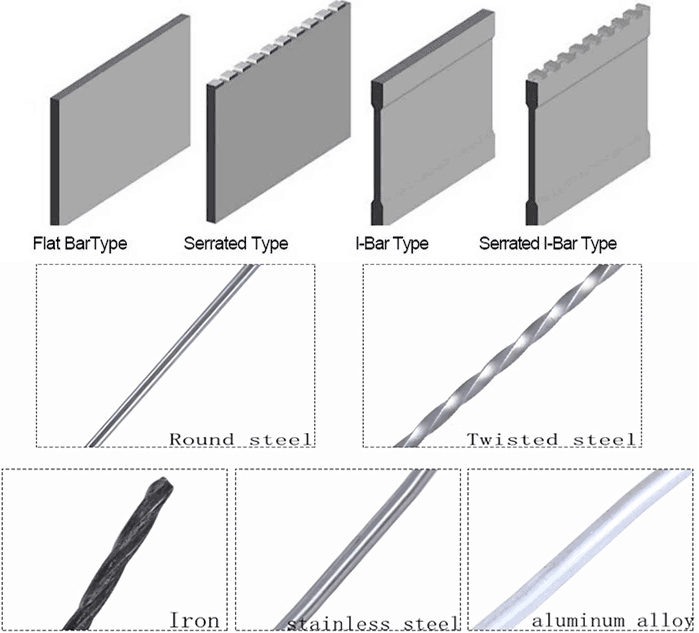

| Flat bar type | Plain, Serrated (tooth-like), |
Application of Steel Grating Walkway

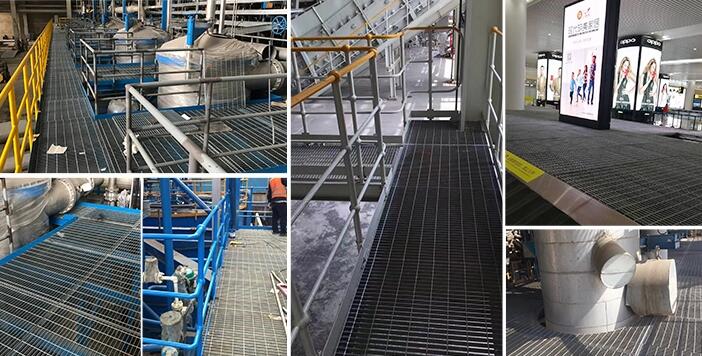

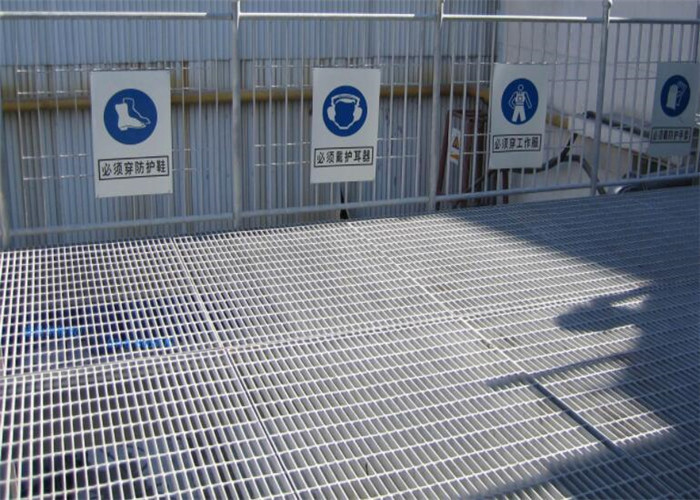

Steel grating has been widely used in all walks of life both at home and abroad, mainly used for industrial platform, staircase pedal, banister, channel floor ,railway bridge service, high tower platform, the drain cover, manhole covers, road barrier ,three-dimensional parking lot, organs, schools, factories, enterprises and institutions, the stadium fence, garden villa, also can be used as a residence outside the window, balcony guardrail, highway ,rail barrier ,etc.
