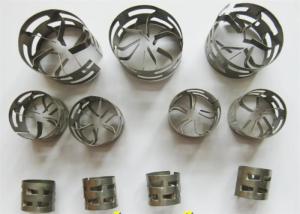

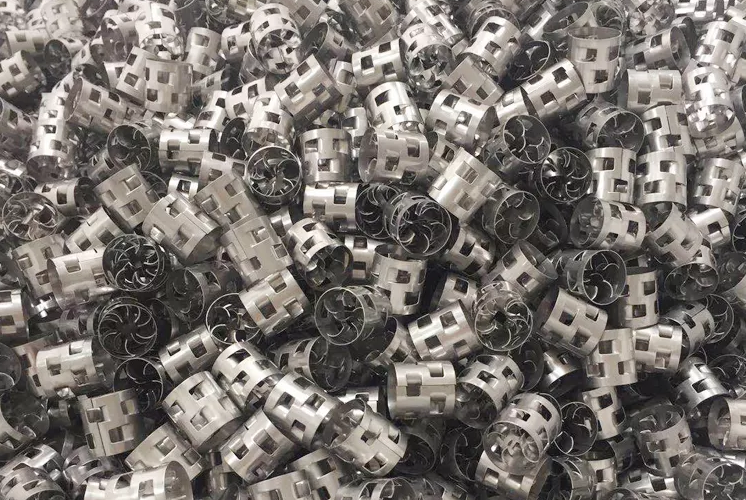

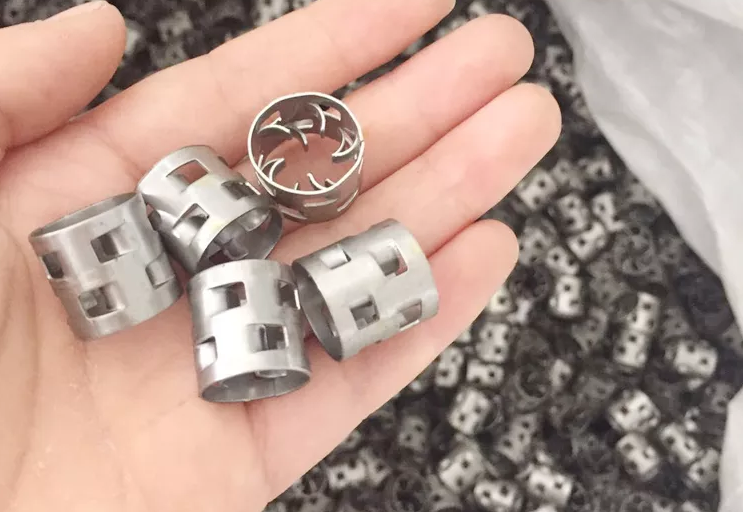

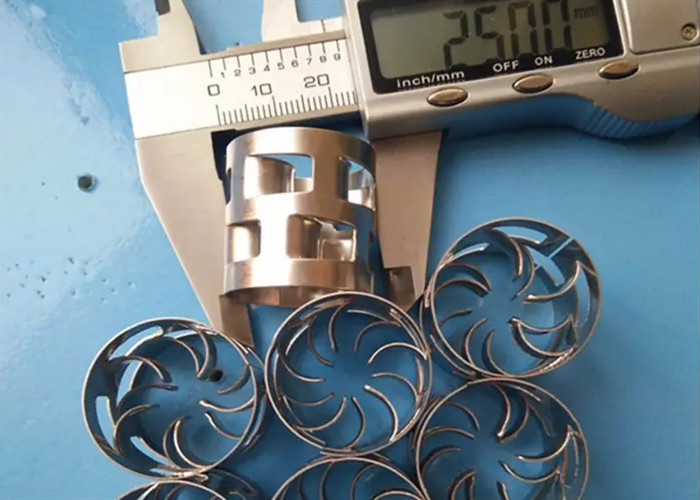

Carbon Steel Pall Ring Packing 38*38*0.5mm For Absorption Columns
Product Description of Metal Pall Packing
The metal pall ring packing was developed in the 1940s by the German company BASF and is made of sheet metal with a total area of about 35% of the total area of the ring wall.Compared with the same specifications of the raschig ring packing, because of pall ring packing opened many hole in the ring wall, makes the tower of gas and liquid can be free from the window by, so packing layer of gas and liquid distribution than raschig ring packings have greatly improved, its separation performance, help pall ring filler is still currently adopted one of the main ring packing.
| Product Name | Stainless Steel Metal Pall Ring |
| Material | metal, stainless steel, carbon steel, Aluminum alloy etc. |
| Surface Area | 62 - 346 m2/m3 |
| Bulk Density | 145 - 345 kg/m3 |
| Feature | Corrosion and Heat Resistance |
| Size | 16mm,25mm,38mm,50mm, 76mm,or customized |
| Certification | ISO9001 |
| Place of Origin | Hebei Province,China |
| Brand Name | Yuanhai |
Specifications of Metal Pall Packing
| Model | Pall Ring |
| Material | Carbon Steel; SS 304, 304L, 410, 316, 316L, etc. |
| Sizes (mm) | Bulk density (kg/m3) | Number (per m3) | Surface area (m2/m3) | Free volume (%) |
| 16×16×0.3 | 345 | 201000 | 346 | 95.5 |
| 25×25×0.3 | 214 | 51000 | 212 | 96.2 |
| 38×38×0.4 | 193 | 15000 | 145 | 96.7 |
| 50×50×0.5 | 182 | 6500 | 106 | 97.5 |
| 76×76×0.6 | 142 | 1830 | 69 | 97.4 |
| 89×89×0.7 | 145 | 1160 | 62 | 97.1 |
Pall ring has a capacity versus pressure drop
It has a high loading and low pressure drop
It has a good distribution on either gas or liquid
Its mass transfer efficiency is high
It is versatile
When it comes to fouling, it has high resistance
It provides lesser probability of breakage
It is recommended for deeper beds
Features of Metal Pall Packing
Pall ring has a capacity versus pressure drop
It has a high loading and low pressure drop
It has a good distribution on either gas or liquid
Its mass transfer efficiency is high
It is versatile
When it comes to fouling, it has high resistance
It provides lesser probability of breakage
It is recommended for deeper beds

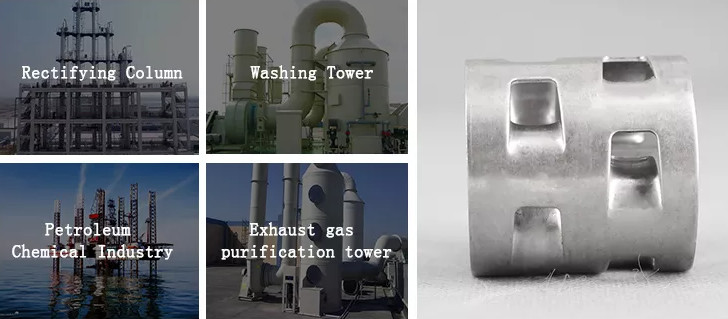

Application of Metal Pall Packing
- Steam stripping
- H2S, NH3 & SO2 absorption and stripping
- Gas washing
- Degassing
- Air pollution control scrubbers
Company Profile
1. Is your company a manufacturer or a trading company?
We are a manufacturer located in Anping County, China.
2. Do you have inport-export right?
Yes, we do. Our factory has been certificated as an import-export enterprise.
3. What is your payment mode?
30% in advance and 70% before delivery by T/T, WESTERN UNION, L/C or negotiated.
4. How about your packing?
We usually packed in plastic material inside and then wooden box outside.
5. How long is your delivery?
Usually 10-20 days after order confirmed, according the quantity ordered.
6. Is it sample available?
Yes, small pieces of sample are available in our company.
