5ft / 6ft Height Pvc Coated Airport 358 Anti Climb Fence

  • 1
  • 2

Brand Name : YUANHAI

Model Number : YH-ACF

Certification : ISO 9001:2015

Place of Origin : CHINA

MOQ : 50 PCS

Price : Negotiable

Supply Ability : 500PCS PER MONTH

Packaging Details : 1. Bubble wrap at the bottom of pallet 2. Putting plastic film between each two panels 3. Metal corners fixed at each corner of the panels 4. The wood panels on the panels

Material : Low Carbon Steel Wire

Hole Size : 76.2mm*12.7mm

Wire Diameter : 4.0mm

Post Size : 60x60mm, 60x80mm, 80x80mm

Surface Treatment : Galvanized/PVC Coated

Fence Topping : Razor Wire, Anti Climb Spikes

Fence Height : 3.0m, 2.4m, 2.2m, 2.0m or customized

Sample : Provide For Free

Place or Origin : Hebei,China

Color : Black,yellow,green, gray,etc

MOQ : 20 sets

Contact Now

358 Fence 5ft / 6ft Height PVC Coated Anti Climb Airport Fence

Description of 358 Security Fencing

358 Security Fence, also called Anti climb fence, is the ultimate welded mesh system providing a high degree protection and discreet visual impact on the immediate environment.

* Material: Q195, steel wire

* Surface treatment:

I. Black wire welded mesh + pvc coated;

II. Galvanized welded mesh + pvc coated;

III. Hot dipped galvanized welded mesh + pvc coated.

(PVC coated colors: dark green, light green, blue, yellow, white, black, orange and red, etc.)

Specifications of 358 Security Fencing

Specification of 358 Security Fencing
Mesh Opening Wire Diameter Panel Height Panel Width Post Type
12.7x76.2mm
(0.5'' x 3'')		 3/3.5/4mm 1.2-6m 2.0-3.1m Square Post(SHS)
60x60x2.0/2.5/3.0mm
80x80x2.0/2.5/3.0mm		 Rectangular Post(RHS)
40x60x2.0/2.5/3.0mm
40x80x2.0/2.5/3.0mm
60x80x2.0/2.5/3.0mm
80x100x2.0/2.5/3.0mm
Surface treatment:hot dipped galvanized, galvanized +powder coated, galvanized +PVC coating.
Color:RAL 6005 green, RAL 7016 gray, All RAL color can be customized.
Note:The fence can be customized according to your required if above specification is not satisfied with you.

358 fence 2.1m 2.4m 3.0m
358 fence hight 2134mm 2438mm 2997mm
358 fence width 2515mm 2515mm 2515mm
358 fence hole size 12.7*76.2mm 12.7*76.2mm 12.7*76.2mm
wire 4mm 4mm 4mm
wire if need other wire diameter can order
358 fence posts 60*60*3mm 60*60*3mm 60*60*3mm
358 fence posts length 2.8m 3.1m 4.0m
no of fixings 8 9 11

Features of 358 Security Fencing

▶The opening holes are so small( fingers cannot penetrate in)

▶Not easily broken(Bolt cutter and wire cutter cannot make itself through the narrow holes)
▶The welded joints are fixed firmly, won't split by natural human and nature force.
▶Long service life(The panel sheet is galvanized uniformly and PVC coated, which ensures a long service life)

Appilication of 358 Security Fencing

Bridge anti-climb guarding&guard safety screening;

Sub-station security fencing;

Factory machine guards;

Walkway security fencing;

Airport security fencing;

358 wire mesh fence gates;

Shipping port security fencing;

Electrical sub-station fencing;

Water treatment works;

Gas security window grilles;

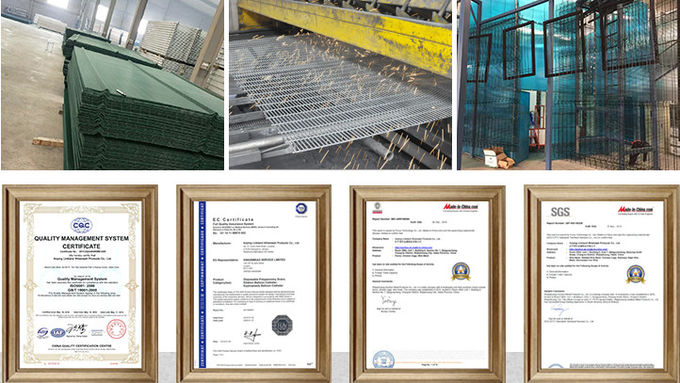

Production Process

1>Panels:raw materials(high quality low carbon steelwire)-straighting&cuttingshort-
welding - galvanizing - powder painting

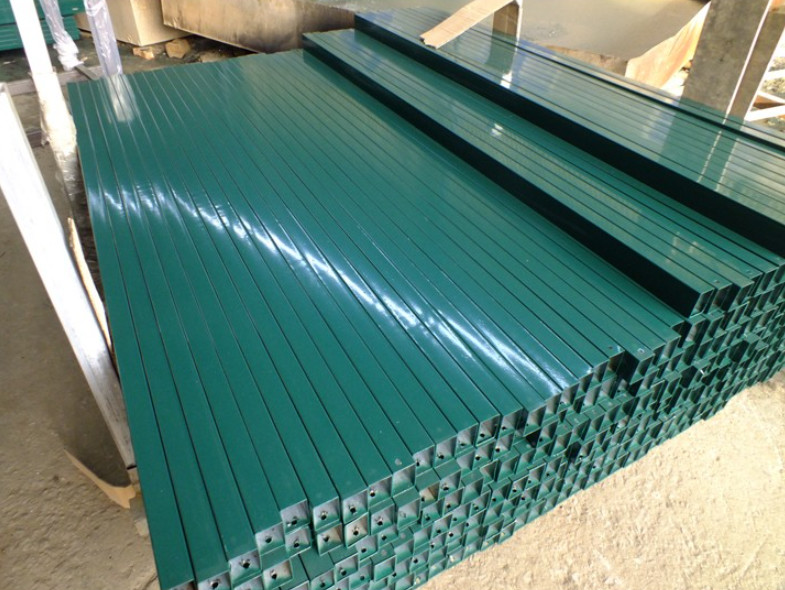

2>Posts:raw materials(hot dipped galvanized tube) - cutting short- punching - weldingmetal caps -
powderpainting
3> Flat Bars: raw materials - cutting short - flatening - punching - powder painting

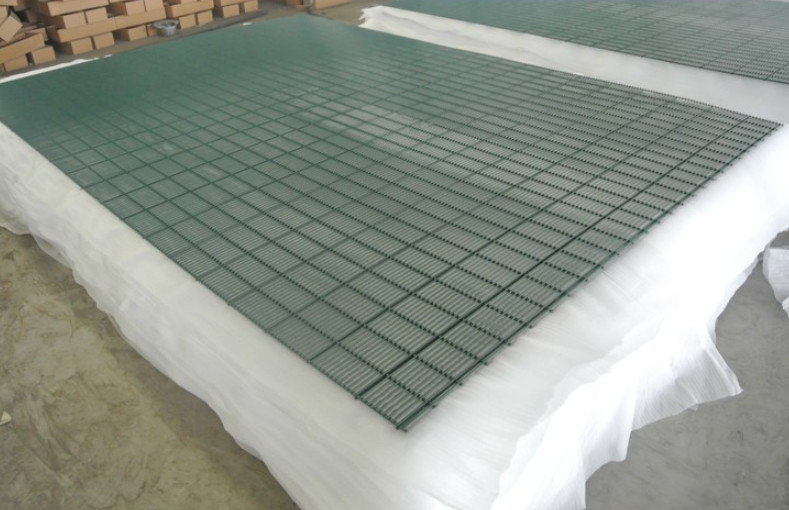

Package of 358 Security Fencing

1>There is rubber mat at the bottom of the pallet to avoid the pallet destroyed the panels
2>There is 4 metal corners to keep the pallet more strong.
3>There is metal plate under the plastic bandage to reduce the apressure of fence panels
4>There is wooden plate at the top of fence panel which can protect the fence panels from being crushed by other pallets.
5ft / 6ft Height Pvc Coated Airport 358 Anti Climb Fence
5ft / 6ft Height Pvc Coated Airport 358 Anti Climb Fence5ft / 6ft Height Pvc Coated Airport 358 Anti Climb Fence5ft / 6ft Height Pvc Coated Airport 358 Anti Climb Fence
5ft / 6ft Height Pvc Coated Airport 358 Anti Climb Fence
5ft / 6ft Height Pvc Coated Airport 358 Anti Climb Fence
FAQ

Q: What is your payment term?
A: Payment:T/T 30% as deposit,the balance against the copy of B/L. Or 100% L/C at sight Or 30%deposit,70% L/C at sight

Q: What is your delivery time?
A: Delivery:15 - 20 days after we receive the deposit.

Q:If the quality not meet my request, what can you do?
A: Refund all your money and compensate your additional loss.

Q: Can you design and make as customers' request?
A: Yes, we will do as the detailed specification from the customers,and professional recommendation will be offered to customers.
